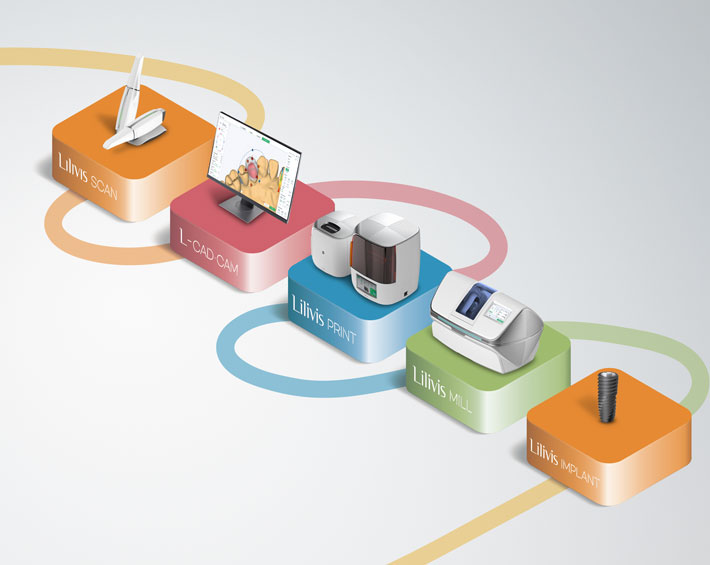

Lilivis perfects its ecosystem by integrating in-house-developed
cutting-edge products and software into a comprehensive workflow.
Experience the Same-Day Digital Solution from diagnosis to treatment
achievable in short time with Lilivis SCAN.
Ergonomically designed handpiece with stable grip allows
easy operation even with one hand.
Comfortable for both the user and patient with a compact weight of 230g.
Usable with special tip autoclavable up to 150 times.
A single movement captures a broader area with a 15x18mm Wide FOV.
Precise scanning is possible in challenging areas such as interdental spaces,
subgingival margins of the teeth, deep embrasures, etc., with a maximum
depth of field (DOF) of up to 22mm.
Enhanced data accuracy by preventing unnecessary element scanning
with AI features such as soft tissue filtering and color filtering.
The handpiece’s Air Mouse allows for real-time verification of data precision,
including magnification and reduction of the Scan data.
The LED indicator on the handpiece facilitates easy confirmation of data collection,
while the real-time generation of 3D model screens enables direct quality
assessment of the data during scanning.
Lilivis SCAN can be securely mounted on the cradle on the side of the table.
You can easily move up and down with a simple pedal operation.
When the table's top is opened, simple accessory storage is possible.
LS-100
Weight : 230g
Size : 250 x 41 x 52 mm
FOV : Up to 15 x 18 mm
DOF : Up to 22 mm
HD Video : 3D in Motion Video
Real Color : 3D Full Color Streaming
Size : 20.2 x 18.3 mm
Sterilization : Autoclavable (150 times per tip)
Cable Length : 2.0 m
Connection Type : USB 3.1
STL/OBJ/PLY
* Specifications and designs are subject to change without notice.
